와셔의 면에서
조립체의 시간까지

열린 보어와 환형 지지면, 체결 경로와 저하중 검사를 연결해 수지 와셔의 역할을 살펴봅니다.

등급 · 지지면 · 크리프 · 축력

Overview.

처음의 치수와 시간이 지난 뒤의 기능을 함께 봅니다

얇은 와셔 한 장도 체결부의 하중 경로와 시간이 지난 뒤의 간격을 바꿉니다. 처음 맞는 치수와 사용 중 유지되는 기능을 함께 살펴봐야 합니다.

공급 등급·온습도·유효 지지 면적부터 NC 선반 고정·양면 가공·저하중 검사·잔류 축력 시험까지 연결합니다. 평와셔의 역할과 한계를 명확히 하고 실제 조립 조건에서 설계를 검증합니다.

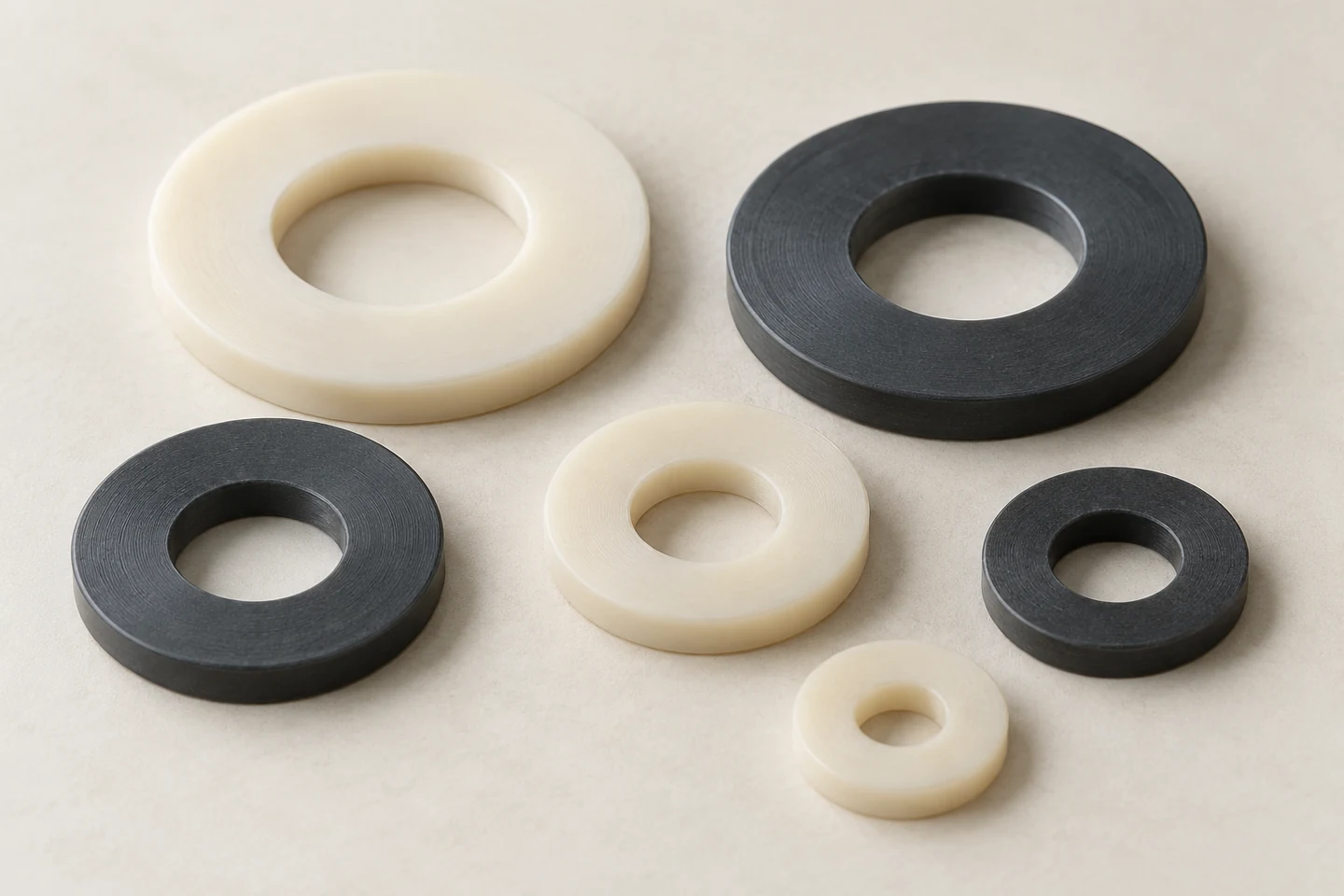

내외경과 두께가 다른 수지 와셔 구성

내외경과 두께가 다른 수지 와셔 구성

Structure.

기능과 하중 경로

01 / WASHER FUNCTION

평와셔의 역할과 한계

면을 분리하는 기능과 체결축력을 유지하는 기능을 구분합니다.

수지 평와셔는 체결면의 직접 접촉을 줄이거나 간격을 만들고 국부적인 표면 손상을 완화하는 데 사용할 수 있습니다. 그러나 링 모양이 같아도 하중 분산·절연·미끄럼·정밀 간격 중 어느 기능이 우선인지에 따라 재질과 형상 요구가 달라집니다.

볼트 머리와 상부 플레이트 사이에 넣으면 와셔는 체결축력의 압축 경로 안에 들어갑니다. 금속을 수지로 바꾸는 일은 색상이나 질량만 바꾸는 것이 아니라 접합부의 강성과 시간 의존성을 바꾸는 일입니다. 초기 조립 상태와 장시간 사용 상태를 함께 정의해야 합니다.

평와셔는 그 자체로 풀림 방지 장치나 완전한 전기 절연 시스템이 아닙니다. 금속 볼트가 구멍 벽에 닿을 수 있으며 크리프에 의해 축력이 감소할 수도 있습니다. 필요하면 절연 슬리브·숄더 구조·별도 잠금 방법을 조립체 수준에서 검토합니다.

분리

직접 면 접촉 완화 · 상대면과 손상 기준

간격

조립 높이 설정 · 조건화·장기 변화

체결

압축 하중 경로 · 잔류 축력 확인

평와셔의 역할과 한계 — 실무 판단 기준

검토 항목기술적 의미검증·관리 기준
분리직접 면 접촉 완화상대면과 손상 기준
간격조립 높이 설정조건화·장기 변화
체결압축 하중 경로잔류 축력 확인

분리

기술적 의미
직접 면 접촉 완화

검증·관리 기준
상대면과 손상 기준

간격

기술적 의미
조립 높이 설정

검증·관리 기준
조건화·장기 변화

체결

기술적 의미
압축 하중 경로

검증·관리 기준
잔류 축력 확인

02 / BEARING SUPPORT

유효 지지면적과 하중 경로

외경 전체가 항상 압축력을 받는 면적은 아닙니다.

볼트 머리나 금속 보조 와셔의 지름이 작으면 수지 링의 바깥 부분은 직접 하중을 받지 않을 수 있습니다. 반대로 아래 플레이트의 구멍이 크면 안쪽 영역이 지지되지 않습니다. 위·아래 접촉면이 겹치는 영역과 가장자리 지지를 먼저 확인합니다.

구멍 가장자리와 큰 모따기는 지지면적을 줄이고 링의 국부 굽힘을 유발할 수 있습니다. 와셔 외경만 키워 평균 면압을 낮춘 계산은 실제 접촉이 함께 넓어질 때에만 의미가 있습니다. 편심 볼트나 기울어진 안착면은 하중을 한쪽으로 몰아줄 수 있습니다.

단면 모델에서 볼트 축, 와셔 보어, 상부 베어링 면과 하부 지지를 함께 봅니다. 화살표는 힘이 전달되는 경로를 설명하는 안내이며 응력분포 해석이 아닙니다. 실제 면압과 변형은 접촉 상태·마찰·재질 및 조립 공차를 포함해 검증합니다.

상부 접촉

머리·보조 와셔의 면 · 실제 지름 확인

하부 지지

플레이트 구멍과 모서리 · 비지지 영역 확인

동심·평행

하중 편중 영향 · 조립 공차 검토

외경 전체가 항상 압축력을 받는 면적은 아닙니다.

상부 접촉

머리·보조 와셔의 면 · 실제 지름 확인

유효 지지면적과 하중 경로 — 실무 판단 기준

검토 항목기술적 의미검증·관리 기준
상부 접촉머리·보조 와셔의 면실제 지름 확인
하부 지지플레이트 구멍과 모서리비지지 영역 확인
동심·평행하중 편중 영향조립 공차 검토

상부 접촉

기술적 의미
머리·보조 와셔의 면

검증·관리 기준
실제 지름 확인

하부 지지

기술적 의미
플레이트 구멍과 모서리

검증·관리 기준
비지지 영역 확인

동심·평행

기술적 의미
하중 편중 영향

검증·관리 기준
조립 공차 검토

Materials.

등급과 환경 상태

03 / SUPPLIED GRADE

재질명보다 공급 등급

색상과 외관으로 수지의 성능을 정하지 않습니다.

POM·PA·PET·PEEK·PTFE는 출발점이 되는 재료군이며, 실제 부품의 특성은 등급·충전재·반제품 제조 이력에 따라 달라집니다. 흰색이나 검은색이라는 정보만으로 재질과 내열성, 절연성 또는 장기 압축 성능을 확정할 수 없습니다.

후보 선정은 사용 온도와 시간, 예상 면압, 물·약품·세정제 노출 및 치수 안정성에서 시작합니다. 낮은 마찰이 유리한 재질도 정밀 간격 유지에는 불리할 수 있습니다. 고성능 수지를 선택했다고 모든 조립 조건의 크리프가 사라지는 것도 아닙니다.

충전재는 강성·열팽창·마모와 전기적 특성을 함께 바꿀 수 있습니다. 탄소계 충전 등급을 순수 수지와 동일한 절연재로 간주하지 않습니다. 재질 성적서와 공급사 등급을 고정하고, 대체 재질의 승인에는 기능 시험과 가공·검사 조건의 검토를 포함합니다.

수지군

초기 후보 분류 · 공급 등급까지 지정

충전재

기계·전기 특성 변화 · 함량·방향성 검토

사용 환경

온도·시간·매질 · 실제 조합으로 평가

수지군

초기 후보 분류 · 공급 등급까지 지정

재질명보다 공급 등급 — 실무 판단 기준

검토 항목기술적 의미검증·관리 기준
수지군초기 후보 분류공급 등급까지 지정
충전재기계·전기 특성 변화함량·방향성 검토
사용 환경온도·시간·매질실제 조합으로 평가
재질 변경복합 영향기능·가공 재승인

수지군

기술적 의미
초기 후보 분류

검증·관리 기준
공급 등급까지 지정

충전재

기술적 의미
기계·전기 특성 변화

검증·관리 기준
함량·방향성 검토

사용 환경

기술적 의미
온도·시간·매질

검증·관리 기준
실제 조합으로 평가

재질 변경

기술적 의미
복합 영향

검증·관리 기준
기능·가공 재승인

선반에 고정된 수지 링과 단인 절삭공구

선반에 고정된 수지 링과 단인 절삭공구

04 / CONDITIONED STATE

온습도와 치수 조건화

검사실 치수와 사용 중 치수가 같다는 가정을 확인합니다.

수지는 금속과 다른 열팽창과 흡습 특성을 가집니다. 특히 흡습 영향을 받는 재질은 보관·세정·사용 환경을 거치면서 치수와 강성이 변할 수 있습니다. 가공 직후의 따뜻한 부품을 검사실 상태로 간주하지 않고 안정화 조건을 정합니다.

조건화 시간은 재질·두께·출발 수분 상태와 목표 환경에 따라 달라집니다. 모든 수지에 같은 시간을 지정하면 실제 상태가 맞지 않을 수 있습니다. 중요한 치수는 온습도와 경과 시간을 기록하고, 필요하면 시간에 따른 질량·치수의 안정성을 확인합니다.

내경의 팽창과 수축은 조립 여유에, 두께 변화는 플레이트 높이와 축력에 연결됩니다. 양단의 금속 부품과 수지 사이의 온도 변화량도 같지 않을 수 있습니다. 사용 온도 범위를 포함하는 조립 시험으로 간섭과 느슨해짐을 확인합니다.

검사실 치수와 사용 중 치수가 같다는 가정을 확인합니다.

온습도와 치수 조건화 — 실무 판단 기준

검토 항목기술적 의미검증·관리 기준
열 상태가공열·사용열안정화 후 측정
흡습치수·강성 변화재질별 조건화
내경 여유상대부품과 차이최악 조건 조립
두께 변화간격·축력 영향사용 온도 시험

열 상태

기술적 의미
가공열·사용열

검증·관리 기준
안정화 후 측정

흡습

기술적 의미
치수·강성 변화

검증·관리 기준
재질별 조건화

내경 여유

기술적 의미
상대부품과 차이

검증·관리 기준
최악 조건 조립

두께 변화

기술적 의미
간격·축력 영향

검증·관리 기준
사용 온도 시험

3D · 환형 면과 체결 하중 경로

STRUCTURE & INTERFACE
ID SOLUTECH / 01
인터랙티브 3D를 준비하고 있습니다.
체결부 단면

일부를 절개하여 머리·분산판·수지·플레이트의 하중 경로를 확인합니다. 화살표는 응력분포나 크리프 해석이 아닙니다.

드래그·방향키: 회전 / + −: 확대·축소 / Home: 초기화환형 면과 체결 하중 경로

외경 전체가 유효 지지면적은 아닐 수 있습니다.

Precision.

가공과 면의 완성

05 / LOW-DISTORTION TURNING

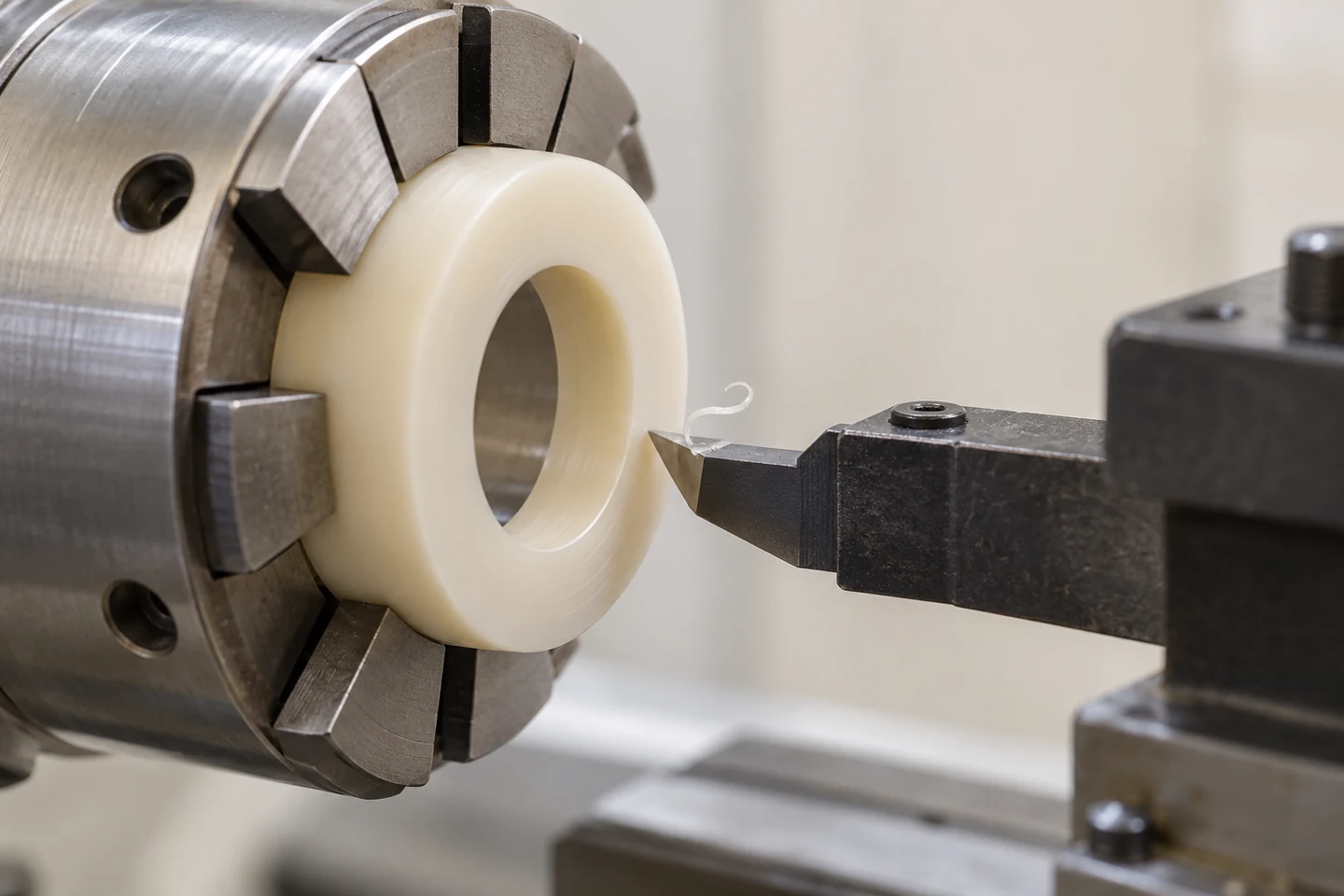

선반 가공과 얇은 링 고정

절삭 중 정확한 원형이 자유 상태에서도 유지되어야 합니다.

봉재에서 내경·외경·단면을 같은 고정으로 가공하면 동심 관계를 연결하기 쉽습니다. 하지만 연한 재료를 강하게 잡으면 척 안에서 변형된 형상을 가공하게 됩니다. 해제 후 진원도와 두께가 바뀌는지 확인해 고정압과 물림 길이를 정합니다.

예리한 날과 충분한 여유각은 문지름과 국부 발열을 줄이는 데 도움이 됩니다. 낮은 열전도와 긴 칩의 감김을 고려해 배출과 냉각을 관리하되, 냉각제가 해당 수지에 팽윤·균열·오염을 유발하지 않는지 먼저 확인합니다.

얇은 완성 링은 단단한 세 점 물림보다 넓은 접촉의 소프트 죠나 적절한 콜릿·지지구가 유리할 수 있습니다. 다만 전면 지지가 검사를 위해 필요한 자유 상태를 가릴 수 있으므로 가공 고정과 검사 고정을 구분합니다. 조건은 등급과 치수비에 맞춰 검증합니다.

고정압

가공 중 형상 왜곡 · 해제 후 재측정

공구 날

문지름·발열 · 예리함·여유각 관리

칩 배출

감김·재절삭 · 중단 없는 배출

고정압

가공 중 형상 왜곡 · 해제 후 재측정

선반 가공과 얇은 링 고정 — 실무 판단 기준

검토 항목기술적 의미검증·관리 기준
고정압가공 중 형상 왜곡해제 후 재측정
공구 날문지름·발열예리함·여유각 관리
칩 배출감김·재절삭중단 없는 배출
냉각제재질과의 상호작용적합성·잔류 확인

고정압

기술적 의미
가공 중 형상 왜곡

검증·관리 기준
해제 후 재측정

공구 날

기술적 의미
문지름·발열

검증·관리 기준
예리함·여유각 관리

칩 배출

기술적 의미
감김·재절삭

검증·관리 기준
중단 없는 배출

냉각제

기술적 의미
재질과의 상호작용

검증·관리 기준
적합성·잔류 확인

06 / FACE COMPLETION

파팅·양면 가공과 모서리

평균 두께가 맞아도 링은 기울거나 접시처럼 휠 수 있습니다.

파팅의 마지막 구간에는 잔여 단면의 강성이 낮아져 공구가 부품을 밀거나 작은 돌기를 남길 수 있습니다. 얇은 링에서는 이 흔적이 안착 높이와 기울기를 바꿉니다. 파팅면을 완성면으로 사용할 수 있는지 요구 공차와 실제 가공 상태로 판단합니다.

양면의 평행도나 정밀 두께가 중요하면 여유를 남겨 반대 면을 마무리하는 경로를 검토합니다. 재고정에서는 첫 면을 손상시키지 않고 변형을 최소화하는 지지가 필요합니다. 중간 안정화·어닐링이 필요하다면 공급 등급의 권장 조건과 이후 치수 변화를 확인합니다.

날카로운 버와 과도한 모따기는 모두 문제가 될 수 있습니다. 버는 조립 중 뜯겨 오염을 만들고 큰 모따기는 지지 면적을 줄입니다. 보어 입구·외주·단면의 모서리 요구를 구분하고, 검사 시 실제 지지 면적과 돌기 유무를 확인합니다.

파팅 돌기

국부 안착 높이 · 제거·한도 확인

2차 페이싱

두께·평행도 완성 · 변형 적은 지지

중간 안정화

응력 재분배 · 등급별 절차

파팅 돌기

국부 안착 높이 · 제거·한도 확인

파팅·양면 가공과 모서리 — 실무 판단 기준

검토 항목기술적 의미검증·관리 기준
파팅 돌기국부 안착 높이제거·한도 확인
2차 페이싱두께·평행도 완성변형 적은 지지
중간 안정화응력 재분배등급별 절차
모서리조립·지지 면적버와 모따기 동시 관리

파팅 돌기

기술적 의미
국부 안착 높이

검증·관리 기준
제거·한도 확인

2차 페이싱

기술적 의미
두께·평행도 완성

검증·관리 기준
변형 적은 지지

중간 안정화

기술적 의미
응력 재분배

검증·관리 기준
등급별 절차

모서리

기술적 의미
조립·지지 면적

검증·관리 기준
버와 모따기 동시 관리

환형 면의 두께를 확인하는 저하중 접촉 측정 구성

환형 면의 두께를 확인하는 저하중 접촉 측정 구성

Motion.

시간 의존성과 첫 계산

07 / TIME DEPENDENCE

크리프와 응력 완화

고정 하중과 고정 변위의 시험은 서로 다른 거동을 봅니다.

크리프는 지속적인 응력 아래에서 변형이 시간에 따라 늘어나는 거동이며, 응력 완화는 변형을 유지했을 때 힘이 줄어드는 거동입니다. 실제 볼트 접합은 볼트와 여러 부품의 강성이 연결되어 있어 어느 한 가지 이상적인 시험 조건과 정확히 같지 않을 수 있습니다.

수지 와셔가 얇아지면 볼트의 탄성 늘어남이 감소하면서 잔류 축력이 낮아질 수 있습니다. 초기 토크를 기록하는 것만으로 이 변화를 알 수 없으며, 온도·하중·시간을 포함한 실제 조립체의 축력 또는 검증 가능한 대리 특성을 측정해야 합니다.

고성능 수지의 인장 크리프·완화 실험도 점탄성과 온도 의존성을 이해하는 데 도움이 되지만, 그 결과를 와셔의 구속 압축 수명으로 바로 환산할 수는 없습니다. 단기 압축강도 역시 장기 허용 면압이 아닙니다. 필요한 유지 시간과 잔류 성능으로 시험을 설계합니다.

크리프

응력 아래 변형 증가 · 하중·온도·시간

응력 완화

변위 유지 시 힘 감소 · 잔류 힘 기록

실제 접합

연결된 강성의 영향 · 조립체 시험

고정 하중과 고정 변위의 시험은 서로 다른 거동을 봅니다.

크리프

응력 아래 변형 증가 · 하중·온도·시간

크리프와 응력 완화 — 실무 판단 기준

검토 항목기술적 의미검증·관리 기준
크리프응력 아래 변형 증가하중·온도·시간
응력 완화변위 유지 시 힘 감소잔류 힘 기록
실제 접합연결된 강성의 영향조립체 시험
시험 전용인장·압축·구속 차이조건 간 직접 환산 금지

크리프

기술적 의미
응력 아래 변형 증가

검증·관리 기준
하중·온도·시간

응력 완화

기술적 의미
변위 유지 시 힘 감소

검증·관리 기준
잔류 힘 기록

실제 접합

기술적 의미
연결된 강성의 영향

검증·관리 기준
조립체 시험

시험 전용

기술적 의미
인장·압축·구속 차이

검증·관리 기준
조건 간 직접 환산 금지

3D · 선삭에서 저하중 검사까지

PROCESS & VALIDATION
ID SOLUTECH / 02
인터랙티브 3D를 준비하고 있습니다.
반대 면 마무리

반대 면을 넓은 지지구에 놓고 날끝이 상면에 접근합니다. 지지 방식은 실제 두께·재질과 자유 상태 변형에 맞춰 검증합니다.

드래그·방향키: 회전 / + −: 확대·축소 / Home: 초기화선삭에서 저하중 검사까지
08 / PRESSURE AND PRELOAD

면압과 축력 손실의 첫 계산

간단한 식은 검토를 시작하게 하지만 장기 성능을 보증하지 않습니다.

동심이고 평행한 환형 접촉이 충분히 지지된다는 가정에서는 유효 면적과 평균 면압을 계산할 수 있습니다. 유효 외경은 와셔 외경이 아니라 실제 하중과 지지가 겹치는 범위에서 정해야 합니다. 편심·큰 모따기·플레이트 휨이 있으면 국부 면압은 평균보다 클 수 있습니다.

가정한 유효 외경 20 mm, 내경 10 mm에 1000 N을 균일하게 전달하면 면적은 약 235.6 mm², 평균 면압은 약 4.24 MPa입니다. 이 값은 형상과 하중에서 나온 산술 예이며 어떤 수지의 허용 면압이나 권장 조임값도 아닙니다.

작은 안착 손실을 볼트와 접합부의 선형 스프링으로 근사하면, 두 강성의 결합값으로 축력 감소를 추정할 수 있습니다. 그러나 수지 강성은 시간·온도·응력에 따라 달라지고 접촉도 변하므로 일정 강성 식을 장기 크리프 예측에 그대로 사용하지 않습니다.

Aₑ=π(Dₑ²−dₑ²)/4 ; p̄=F/Aₑ ; ΔF≈[kᵦkⱼ/(kᵦ+kⱼ)]δₛ

Aₑ: 동심 환형 유효 접촉면적[mm²], Dₑ·dₑ: 실제 겹침 영역의 외·내경[mm], F: 축방향 힘[N], p̄: 평균 면압[MPa]. kᵦ·kⱼ: 볼트·압축 접합부의 해당 상태 탄성 강성[N/mm], δₛ: 작은 비탄성 안착 손실[mm], ΔF: 외력이 일정하고 접촉이 유지될 때의 축력 감소 근사[N]. 면압식은 균일 지지, 축력식은 선형·소변위·일정 강성을 가정합니다. 국부 압력, 비선형 크리프·온도 변화·접촉 이탈은 별도 해석·시험이 필요합니다.

유효 면적

상하 접촉의 겹침 · 실제 지지 형상

면압과 축력 손실의 첫 계산 — 실무 판단 기준

검토 항목기술적 의미검증·관리 기준
유효 면적상하 접촉의 겹침실제 지지 형상
평균 면압하중/면적국부 집중 별도 검토
강성 k힘/탄성 변위상태·단위 일치
안착 손실두께 감소시간 의존성 별도 시험

유효 면적

기술적 의미
상하 접촉의 겹침

검증·관리 기준
실제 지지 형상

평균 면압

기술적 의미
하중/면적

검증·관리 기준
국부 집중 별도 검토

강성 k

기술적 의미
힘/탄성 변위

검증·관리 기준
상태·단위 일치

안착 손실

기술적 의미
두께 감소

검증·관리 기준
시간 의존성 별도 시험

초기 토크만으로 장기 잔류 축력을 알 수 없습니다.

Interface.

하중 제어와 검사

09 / LIMITER INTERFACE

압축 리미터와 절연 경계

하중 우회 구조가 필요한 기능과 양립하는지 확인합니다.

금속 압축 리미터는 조임 하중의 일부 또는 주요 부분을 금속 경로로 전달하도록 설계할 수 있습니다. 리미터 길이와 와셔·플레이트 두께의 공차 관계가 중요하며, 너무 길면 수지 부품이 충분히 고정되지 않고 너무 짧으면 과도하게 눌릴 수 있습니다.

볼트 머리나 보조 와셔는 리미터와 수지를 의도한 방식으로 덮어야 합니다. 지지부에 끝이 제대로 닿지 않거나 다른 인서트와 어긋나면 예상한 하중 경로가 형성되지 않습니다. 조립 후 실제 접촉과 간격을 확인하는 단면·치수 검토가 필요합니다.

금속 리미터를 넣으면 전기적으로 새로운 연결 경로가 생길 수 있습니다. 절연이 목적이면 볼트·슬리브·플레이트·오염 경로를 모두 포함해 검토하고 필요한 시험을 수행합니다. 하중 유지와 전기 분리는 각각 확인해야 하는 요구입니다.

하중 우회 구조가 필요한 기능과 양립하는지 확인합니다.

길이 공차

하중 분담 결정 · 두께와 누적 검토

압축 리미터와 절연 경계 — 실무 판단 기준

검토 항목기술적 의미검증·관리 기준
길이 공차하중 분담 결정두께와 누적 검토
상부 베어링리미터·수지 덮음접촉 면적 확인
끝단 안착금속 경로의 연속성편심·인서트 정렬
절연 경계새 전도 경로조립체 시험

길이 공차

기술적 의미
하중 분담 결정

검증·관리 기준
두께와 누적 검토

상부 베어링

기술적 의미
리미터·수지 덮음

검증·관리 기준
접촉 면적 확인

끝단 안착

기술적 의미
금속 경로의 연속성

검증·관리 기준
편심·인서트 정렬

절연 경계

기술적 의미
새 전도 경로

검증·관리 기준
조립체 시험

10 / LOW-FORCE INSPECTION

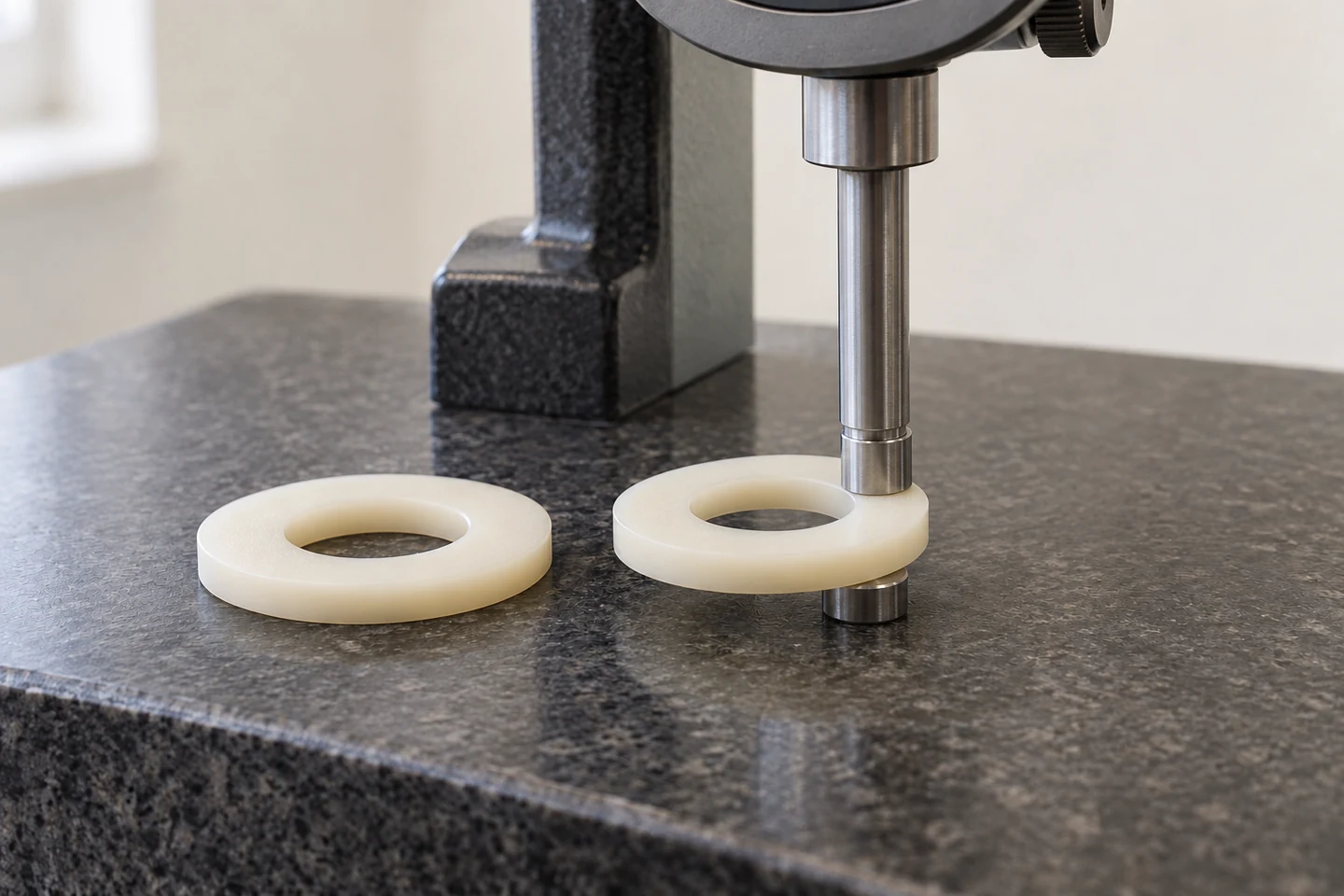

두께·평행도·보어 검사

측정력으로 부품을 바꾸지 않도록 검사 조건을 정합니다.

두께는 한 점의 값보다 여러 위치의 분포가 중요할 수 있습니다. 접촉식 측정에서는 측정력과 접촉면적이 수지의 눌림을 바꾸므로, 사용하는 장비와 접촉자를 고정하고 반복 측정의 회복 시간을 검토합니다. 작은 접촉자가 항상 더 정확한 것은 아닙니다.

평면도·평행도는 양면의 관계를 평가하는 별도 특성입니다. 전면 지지로 부품을 펴 놓으면 자유 상태의 접시형 휨을 숨길 수 있습니다. 실제 조립 요구에 맞춰 지지점과 구속 상태를 정의하고 파팅 돌기·모서리 버의 영향을 구분합니다.

보어와 외경은 조립 여유·진원도·동심 관계를 함께 봅니다. 핀 게이지를 힘으로 밀어 넣으면 연한 링이 늘어나 판정을 왜곡할 수 있습니다. 조건화 후 저하중 측정과 실제 조립 확인을 연결하고, 검사 온습도와 재질 로트를 기록합니다.

두께

위치별 분포 · 힘·접촉면 고정

평행도

양면 방향 관계 · 지지·구속 명시

보어

끼움·진원도 · 강제 삽입 방지

두께

위치별 분포 · 힘·접촉면 고정

두께·평행도·보어 검사 — 실무 판단 기준

검토 항목기술적 의미검증·관리 기준
두께위치별 분포힘·접촉면 고정
평행도양면 방향 관계지지·구속 명시
보어끼움·진원도강제 삽입 방지
환경치수의 상태온습도·경과시간

두께

기술적 의미
위치별 분포

검증·관리 기준
힘·접촉면 고정

평행도

기술적 의미
양면 방향 관계

검증·관리 기준
지지·구속 명시

보어

기술적 의미
끼움·진원도

검증·관리 기준
강제 삽입 방지

환경

기술적 의미
치수의 상태

검증·관리 기준
온습도·경과시간

Validation.

유지 성능과 승인

11 / RETAINED FUNCTION

조립체의 유지 성능 시험

합격 기준은 사용 시간이 지난 뒤에도 기능을 만족하는 상태입니다.

시험은 실제 볼트·상대면·윤활·조립 순서를 가능한 한 재현해야 합니다. 초기 축력과 두께를 기준으로 정하고 필요한 온도·습도·매질·하중 유지 조건을 부여합니다. 사용 기능에 따라 잔류 축력, 간격 변화, 미끄럼·절연·표면 손상을 평가합니다.

짧은 시험을 고온에서 수행한다고 장기 사용 수명으로 자동 환산되지는 않습니다. 재료의 전이, 결정화, 수분 이동과 화학 변화가 개입하면 거동의 형태가 달라질 수 있습니다. 가속 조건은 실제 고장 형태를 유지하는지 검증한 뒤 적용합니다.

재조임은 초기 안착을 줄일 수 있어도 모든 크리프와 진동 문제를 해결하는 보편적 방법은 아닙니다. 정비가 허용되는 조립체인지, 재조임 때 수지가 손상되지 않는지 확인합니다. 시험 중 체결을 손대었다면 그 시점과 방법을 결과에 남겨야 합니다.

조립 재현

볼트·면·윤활 · 실사용 조건 정합

유지 조건

온도·시간·매질 · 기능별 시험 계획

잔류 성능

축력·간격·절연 · 사전 한계값 정의

합격 기준은 사용 시간이 지난 뒤에도 기능을 만족하는 상태입니다.

조립 재현

볼트·면·윤활 · 실사용 조건 정합

조립체의 유지 성능 시험 — 실무 판단 기준

검토 항목기술적 의미검증·관리 기준
조립 재현볼트·면·윤활실사용 조건 정합
유지 조건온도·시간·매질기능별 시험 계획
잔류 성능축력·간격·절연사전 한계값 정의
가속·재조임거동 변경 가능근거·이력 기록

조립 재현

기술적 의미
볼트·면·윤활

검증·관리 기준
실사용 조건 정합

유지 조건

기술적 의미
온도·시간·매질

검증·관리 기준
기능별 시험 계획

잔류 성능

기술적 의미
축력·간격·절연

검증·관리 기준
사전 한계값 정의

가속·재조임

기술적 의미
거동 변경 가능

검증·관리 기준
근거·이력 기록

12 / PRODUCTION RELEASE

도면과 양산 승인

재질·상태·형상·검사 조건을 한 세트로 고정합니다.

도면에는 공급 등급, 내외경·두께, 필요한 형상 공차와 모서리 상태를 명시합니다. 조건화와 측정력이 중요한 경우 검사 문서에 연결하고, 용도상 필요한 절연·청정·추적성 요구를 별도로 적습니다. 외관 색상은 재질 성적서를 대신하지 않습니다.

초도 승인에서는 자유 상태와 실제 조립 상태를 비교하고, 가공·보관·세정 후 치수 변화를 확인합니다. 양산 관리에는 소재 로트, 공구·고정 조건, 파팅·2차 가공 여부와 검사 환경을 남깁니다. 대체 재질이나 공급 방식 변경은 같은 이름의 수지라도 검토 대상입니다.

수지 평와셔의 신뢰성은 링을 정밀하게 깎는 일과 사용 중 형상을 유지하는 일을 함께 해결할 때 확보됩니다. 기능에 맞는 재질, 실제 지지 면적, 낮은 변형의 가공·검사와 조립체 시험을 연결합니다. 단기 강도나 첫 조임 토크만으로 장기 성능을 약속하지 않습니다.

도면 정의

재질·치수·모서리 · 등급과 버전 관리

검사 조건

환경·힘·지지 · 재현 가능한 절차

초도 승인

자유·조립 상태 · 유지 성능 확인

도면 정의

재질·치수·모서리 · 등급과 버전 관리

도면과 양산 승인 — 실무 판단 기준

검토 항목기술적 의미검증·관리 기준
도면 정의재질·치수·모서리등급과 버전 관리
검사 조건환경·힘·지지재현 가능한 절차
초도 승인자유·조립 상태유지 성능 확인
양산 이력소재·공정·변경로트 추적

도면 정의

기술적 의미
재질·치수·모서리

검증·관리 기준
등급과 버전 관리

검사 조건

기술적 의미
환경·힘·지지

검증·관리 기준
재현 가능한 절차

초도 승인

기술적 의미
자유·조립 상태

검증·관리 기준
유지 성능 확인

양산 이력

기술적 의미
소재·공정·변경

검증·관리 기준
로트 추적

정밀한 가공과 유지 성능의 검증이 함께 필요합니다.

Start a
Project.

재질 등급·치수·볼트와 지지면·사용 환경 및 유지 성능 기준을 전달해 주세요.

Share grade, dimensions, bolt and supports, environment and retained-performance criteria.

개발 상담 · Contact

기술 협의 · Engineering Consultation
도면과 사양을 기준으로 소재·가공·표면처리,
주요 품질 항목과 공급 조건을 함께 검토합니다.


We review drawings and specifications to define materials, manufacturing methods, surface finishes, key quality requirements, and supply conditions.

개발 의뢰하기 · Development Inquiry

    도면 및 기술자료
    Drawings & Technical Documents

    도면 번호와 개정 이력이 표시된 2D·3D 도면을 첨부해 주세요.
    사양서와 검사 기준도 함께 전달할 수 있습니다.
    Attach your 2D or 3D drawings with their drawing numbers and revisions.
    Include specifications and inspection criteria as needed.

    파일을 이곳에 놓아주세요Drag & drop your files here

    선택된 파일 없음 / No files attached

    최대 5개 · 파일당 5MB · 총 15MB / Up to 5 files · 5MB each · 15MB total
    PDF · DWG · DXF · STEP/STP · IGS/IGES · JPG · PNG · ZIP

    * 필수 입력 / Required fields

    POLYMER WASHER ENGINEERING

    열린 보어와 평행한 면을 가진 수지 평와셔

    From washer faces
    to time in the assembly

    Explore the open bore, annular support, clamping path and low-load inspection of polymer washers.

    Grade · Support · Creep · Preload

    ENGLISH EDITION

    Joint stability
    begins with a thin ring

    Polymer washer grades, turning, bearing pressure and retained preload

    Review initial dimensions and function retained over time

    Even a thin washer changes the load path and the spacing retained over time. Consider both initial dimensions and the function preserved during use.

    Connect supplied grade, environment and effective support to turning, second-face finishing, low-load inspection and retained-preload testing. Define the limits of a flat washer and verify the design under actual assembly conditions.

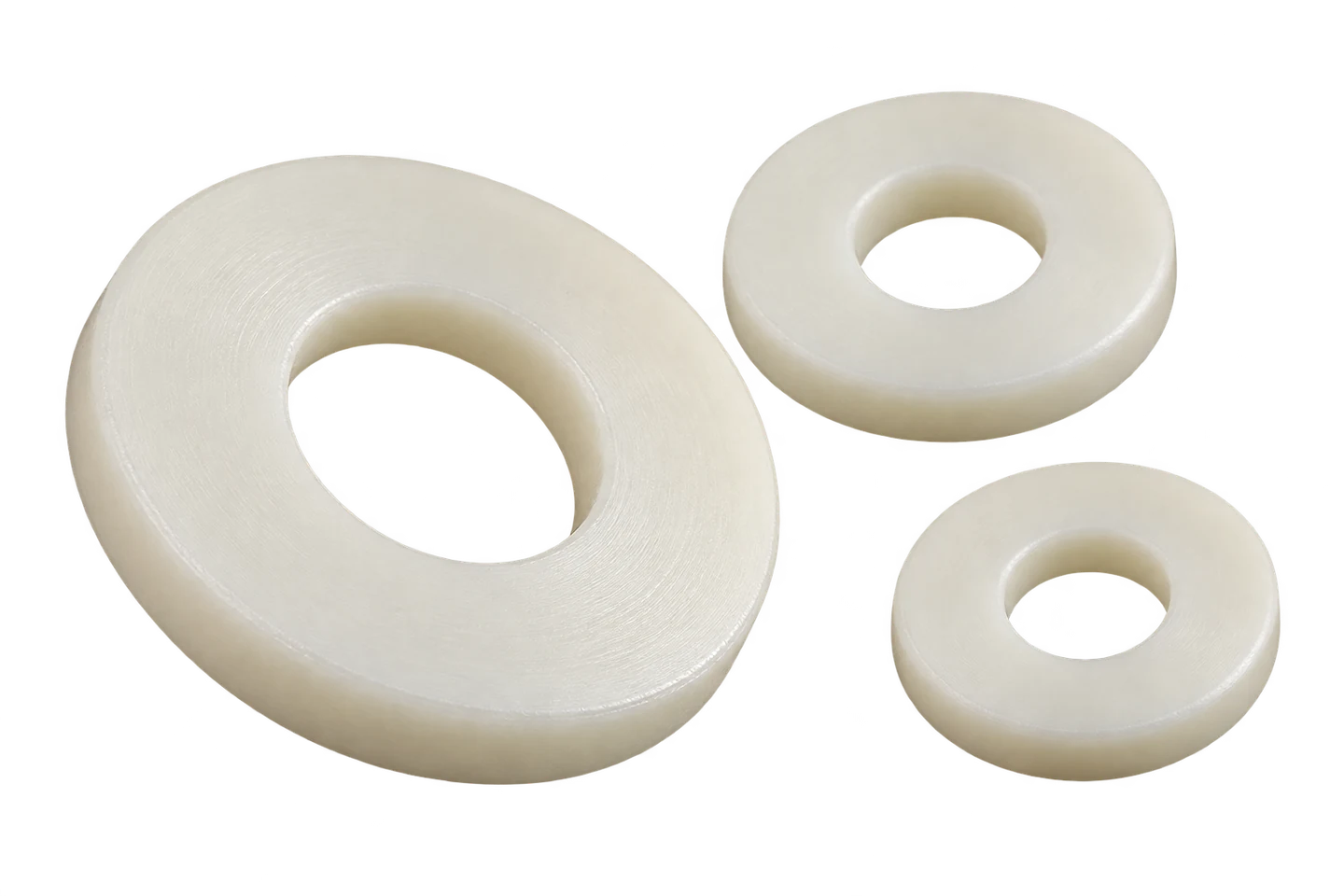

    내외경과 두께가 다른 수지 와셔 구성

    Polymer washers with varied diameters and thicknesses

    Structure.

    Function and load paths

    01 / WASHER FUNCTION

    The role and limits of a flat washer

    Distinguish surface separation from preload retention.

    A polymer flat washer can separate mating faces, establish spacing or reduce local surface damage. Even with the same ring geometry, material and dimensional requirements differ depending on whether load distribution, insulation, sliding or precise spacing is the priority.

    Placed between a bolt head and an upper plate, the washer becomes part of the compressive preload path. Replacing metal with polymer changes joint stiffness and time-dependent behavior as well as mass and appearance. Define both initial assembly and long-term service conditions.

    A flat washer is not inherently a locking device or a complete electrical isolation system. A metal bolt can still touch the hole wall, and creep can reduce preload. Review sleeves, shoulder features and separate locking arrangements at assembly level where needed.

    Separation

    Reduces direct face contact. Mating surface and damage criteria

    Spacing

    Sets assembly height. Conditioning and long-term change

    Clamping

    Carries compressive load. Verify residual preload

    The role and limits of a flat washer — Review Criteria

    Review itemEngineering significanceVerification or control
    SeparationReduces direct face contactMating surface and damage criteria
    SpacingSets assembly heightConditioning and long-term change
    ClampingCarries compressive loadVerify residual preload

    Separation

    Engineering significance
    Reduces direct face contact

    Verification or control
    Mating surface and damage criteria

    Spacing

    Engineering significance
    Sets assembly height

    Verification or control
    Conditioning and long-term change

    Clamping

    Engineering significance
    Carries compressive load

    Verification or control
    Verify residual preload

    02 / BEARING SUPPORT

    Effective support and load path

    The full outside diameter is not always the loaded area.

    If the bolt head or metal spreading washer is small, the outer part of the polymer ring may receive little direct load. If the plate hole beneath is large, the inner region is unsupported. First identify the overlap of upper and lower contact areas and the support at their edges.

    Hole edges and large chamfers can reduce support and introduce local bending. Increasing washer outside diameter lowers a nominal pressure calculation only when the actual bearing area also expands. An eccentric bolt or tilted face can concentrate loading on one side.

    The cutaway model relates bolt axis, washer bore, upper bearing face and lower support. Arrows explain a force path and do not represent a stress solution. Verify pressure and deformation using the actual contacts, friction, material and assembly tolerances.

    Upper contact

    Head or spreading-washer face. Check actual diameter

    Lower support

    Plate bore and edge. Identify unsupported areas

    Concentricity and parallelism

    Load distribution. Review assembly tolerances

    The full outside diameter is not always the loaded area.

    Upper contact

    Head or spreading-washer face. Check actual diameter

    Effective support and load path — Review Criteria

    Review itemEngineering significanceVerification or control
    Upper contactHead or spreading-washer faceCheck actual diameter
    Lower supportPlate bore and edgeIdentify unsupported areas
    Concentricity and parallelismLoad distributionReview assembly tolerances

    Upper contact

    Engineering significance
    Head or spreading-washer face

    Verification or control
    Check actual diameter

    Lower support

    Engineering significance
    Plate bore and edge

    Verification or control
    Identify unsupported areas

    Concentricity and parallelism

    Engineering significance
    Load distribution

    Verification or control
    Review assembly tolerances

    Materials.

    Grade and environmental state

    03 / SUPPLIED GRADE

    Specify the supplied grade

    Appearance does not establish a polymer grade.

    POM, PA, PET, PEEK and PTFE identify material families, while the actual response depends on grade, fillers and stock manufacture. White or black appearance cannot establish identity, temperature capability, electrical insulation or long-term compressive performance.

    Start selection from temperature and duration, expected bearing pressure, water and chemical exposure, cleaning agents and dimensional stability. A low-friction material may be unsuitable for precise spacing. Selecting a high-performance polymer does not eliminate creep under every assembly condition.

    Fillers can change stiffness, thermal expansion, wear and electrical behavior together. Do not assume that a carbon-filled grade provides the insulation of the unfilled resin. Freeze the supplier grade and certification, and qualify substitutions through functional tests and manufacturing review.

    Polymer family

    Initial candidate class. Specify supplied grade

    Filler

    Mechanical and electrical changes. Review content and directionality

    Environment

    Temperature, duration and medium. Test the actual combination

    Polymer family

    Initial candidate class. Specify supplied grade

    Specify the supplied grade — Review Criteria

    Review itemEngineering significanceVerification or control
    Polymer familyInitial candidate classSpecify supplied grade
    FillerMechanical and electrical changesReview content and directionality
    EnvironmentTemperature, duration and mediumTest the actual combination
    SubstitutionMultiple coupled effectsReapprove function and processing

    Polymer family

    Engineering significance
    Initial candidate class

    Verification or control
    Specify supplied grade

    Filler

    Engineering significance
    Mechanical and electrical changes

    Verification or control
    Review content and directionality

    Environment

    Engineering significance
    Temperature, duration and medium

    Verification or control
    Test the actual combination

    Substitution

    Engineering significance
    Multiple coupled effects

    Verification or control
    Reapprove function and processing

    선반에 고정된 수지 링과 단인 절삭공구

    Polymer ring held on a lathe with a single-point tool

    04 / CONDITIONED STATE

    Temperature, moisture and conditioning

    Check the assumption that inspection and service dimensions agree.

    Polymers have thermal expansion and moisture responses different from metals. Moisture-sensitive grades can change size and stiffness during storage, cleaning and service. A warm part immediately after machining is not yet in the inspection environment; define stabilization conditions.

    Conditioning duration depends on material, thickness, initial moisture state and target environment. One universal duration can leave different parts in different states. Record temperature, humidity and elapsed time for critical measurements, and check mass or dimensional stability where appropriate.

    Bore expansion or contraction affects assembly clearance, while thickness changes affect plate height and preload. Metal members and the polymer may also experience different temperature changes. Test the assembly over its service range for interference and loss of restraint.

    Check the assumption that inspection and service dimensions agree.

    Temperature, moisture and conditioning — Review Criteria

    Review itemEngineering significanceVerification or control
    Thermal stateMachining and service heatMeasure after stabilization
    MoistureSize and stiffness changeMaterial-specific conditioning
    Bore clearanceDifferential size changeWorst-condition assembly check
    Thickness changeSpacing and preloadService-temperature test

    Thermal state

    Engineering significance
    Machining and service heat

    Verification or control
    Measure after stabilization

    Moisture

    Engineering significance
    Size and stiffness change

    Verification or control
    Material-specific conditioning

    Bore clearance

    Engineering significance
    Differential size change

    Verification or control
    Worst-condition assembly check

    Thickness change

    Engineering significance
    Spacing and preload

    Verification or control
    Service-temperature test

    3D · Annular Faces and Joint Load Path

    STRUCTURE & INTERFACE
    ID SOLUTECH / 01
    Preparing interactive 3D.
    Joint cutaway

    A cutaway exposes the head, spreader, polymer and plates. Arrows indicate a load path, not stress or creep results.

    Drag / arrow keys: rotate · + −: zoom · Home: resetAnnular Faces and Joint Load Path

    The entire outside diameter may not provide effective support.

    Precision.

    Machining and face completion

    05 / LOW-DISTORTION TURNING

    Turning and holding a thin ring

    A round shape under clamping must remain useful after release.

    Machining bore, outside diameter and face in one holding can preserve their concentric relationship. Excessive chuck force, however, cuts a part that is already distorted. Set pressure and grip length by checking roundness and thickness after release.

    Sharp edges and suitable clearance help limit rubbing and local heat. Account for low heat conduction and long, entangling chips through evacuation and cooling, but first verify that the coolant does not cause swelling, cracking or contamination in the grade.

    A thin finished ring may benefit from broad soft-jaw, collet or fixture contact instead of concentrated hard-jaw loading. Full support can conceal free-state deformation during inspection, so distinguish machining restraint from inspection restraint. Validate settings for the grade and geometry ratio.

    Clamp pressure

    Distortion during cutting. Remeasure after release

    Cutting edge

    Rubbing and heat. Sharpness and clearance

    Chip evacuation

    Entanglement and recutting. Maintain clear removal

    Clamp pressure

    Distortion during cutting. Remeasure after release

    Turning and holding a thin ring — Review Criteria

    Review itemEngineering significanceVerification or control
    Clamp pressureDistortion during cuttingRemeasure after release
    Cutting edgeRubbing and heatSharpness and clearance
    Chip evacuationEntanglement and recuttingMaintain clear removal
    CoolantMaterial interactionCompatibility and residue

    Clamp pressure

    Engineering significance
    Distortion during cutting

    Verification or control
    Remeasure after release

    Cutting edge

    Engineering significance
    Rubbing and heat

    Verification or control
    Sharpness and clearance

    Chip evacuation

    Engineering significance
    Entanglement and recutting

    Verification or control
    Maintain clear removal

    Coolant

    Engineering significance
    Material interaction

    Verification or control
    Compatibility and residue

    06 / FACE COMPLETION

    Parting, second-face finishing and edges

    Correct average thickness does not ensure parallel or flat faces.

    Near the end of parting, the remaining section loses stiffness, allowing the tool to push the ring or leave a small projection. On a thin washer this can alter seating height and tilt. Decide whether the parted face is acceptable from its actual condition and specified tolerance.

    When face parallelism or precise thickness matters, consider leaving allowance for second-face finishing. Reholding must support the first face without damage or excessive distortion. If intermediate stabilization or annealing is needed, follow the grade-specific procedure and verify subsequent movement.

    Both sharp burrs and excessive chamfers can cause problems. Burrs may detach as contamination, while large chamfers reduce bearing area. Define separate edge requirements for the bore, outside diameter and faces, then inspect the real seating area and remaining projections.

    Parting projection

    Local seating height. Remove or limit

    Second-face finishing

    Thickness and parallelism. Low-distortion support

    Stabilization

    Stress redistribution. Grade-specific procedure

    Parting projection

    Local seating height. Remove or limit

    Parting, second-face finishing and edges — Review Criteria

    Review itemEngineering significanceVerification or control
    Parting projectionLocal seating heightRemove or limit
    Second-face finishingThickness and parallelismLow-distortion support
    StabilizationStress redistributionGrade-specific procedure
    EdgesAssembly and bearing areaControl burr and chamfer

    Parting projection

    Engineering significance
    Local seating height

    Verification or control
    Remove or limit

    Second-face finishing

    Engineering significance
    Thickness and parallelism

    Verification or control
    Low-distortion support

    Stabilization

    Engineering significance
    Stress redistribution

    Verification or control
    Grade-specific procedure

    Edges

    Engineering significance
    Assembly and bearing area

    Verification or control
    Control burr and chamfer

    환형 면의 두께를 확인하는 저하중 접촉 측정 구성

    Low-load contact arrangement for annular-face thickness

    Motion.

    Time dependence and first calculations

    07 / TIME DEPENDENCE

    Creep and stress relaxation

    Constant-load and constant-displacement tests probe different responses.

    Creep is increasing deformation under sustained stress; stress relaxation is declining force while deformation is held. A real bolted joint connects the stiffness of the bolt and several members, so it may match neither ideal test condition exactly.

    As a polymer washer becomes thinner, elastic bolt extension can decrease and residual preload may fall. Recording initial torque alone does not reveal that evolution. Measure preload, or a validated proxy, in the actual assembly under relevant temperature, load and duration.

    Tensile creep and relaxation experiments on high-performance polymers help establish time and temperature dependence but do not directly predict the life of a confined compression washer. Short-term compressive strength is also not a long-term allowable pressure. Design tests around required retention time and residual performance.

    Creep

    Strain grows under stress. Load, temperature and time

    Relaxation

    Force decays at held strain. Record retained force

    Real joint

    Coupled stiffness response. Test the assembly

    Constant-load and constant-displacement tests probe different responses.

    Creep

    Strain grows under stress. Load, temperature and time

    Creep and stress relaxation — Review Criteria

    Review itemEngineering significanceVerification or control
    CreepStrain grows under stressLoad, temperature and time
    RelaxationForce decays at held strainRecord retained force
    Real jointCoupled stiffness responseTest the assembly
    Test transferTension, compression and confinementAvoid direct lifetime conversion

    Creep

    Engineering significance
    Strain grows under stress

    Verification or control
    Load, temperature and time

    Relaxation

    Engineering significance
    Force decays at held strain

    Verification or control
    Record retained force

    Real joint

    Engineering significance
    Coupled stiffness response

    Verification or control
    Test the assembly

    Test transfer

    Engineering significance
    Tension, compression and confinement

    Verification or control
    Avoid direct lifetime conversion

    3D · From Turning to Low-Load Inspection

    PROCESS & VALIDATION
    ID SOLUTECH / 02
    Preparing interactive 3D.
    Finish second face

    A broad support holds the opposite face while the edge reaches the annular top. Validate restraint for actual thickness, material and free-state movement.

    Drag / arrow keys: rotate · + −: zoom · Home: resetFrom Turning to Low-Load Inspection
    08 / PRESSURE AND PRELOAD

    First calculations for pressure and preload loss

    Simple equations start the review but do not guarantee long-term performance.

    For concentric, parallel, fully supported annular contact, effective area and average bearing pressure can be calculated. Effective outside diameter comes from the overlap of loading and support, not automatically from washer outside diameter. Eccentricity, large chamfers and plate bending can raise local pressure above the average.

    An assumed effective outside diameter of 20 mm and inside diameter of 10 mm carrying 1000 N uniformly gives about 235.6 mm² of area and 4.24 MPa average pressure. This is an arithmetic example from geometry and load, not an allowable pressure or recommended tightening value for any polymer.

    For a small seating loss, a linear spring approximation of bolt and joint members relates lost thickness to reduced preload through their combined stiffness. Polymer stiffness and contact evolve with time, temperature and stress, so a constant-stiffness equation is not a long-term creep prediction.

    Aₑ=π(Dₑ²−dₑ²)/4 ; p̄=F/Aₑ ; ΔF≈[kᵦkⱼ/(kᵦ+kⱼ)]δₛ

    Aₑ is concentric annular effective contact area [mm²]; Dₑ and dₑ are the outer and inner diameters of the actual overlap [mm]; F is axial load [N]; p̄ is average pressure [MPa]. kᵦ and kⱼ are the state-specific elastic stiffnesses of bolt and compressed members [N/mm]; δₛ is a small inelastic seating loss [mm]; ΔF approximates preload reduction [N] with constant external loading and maintained contact. The expressions assume uniform support or linear small-displacement, constant-stiffness response. Local pressure, nonlinear creep, temperature changes and separation require separate analysis or tests.

    Effective area

    Overlap of upper and lower contact. Actual support geometry

    First calculations for pressure and preload loss — Review Criteria

    Review itemEngineering significanceVerification or control
    Effective areaOverlap of upper and lower contactActual support geometry
    Average pressureForce divided by areaReview local concentration separately
    Stiffness kForce per elastic displacementMatch state and units
    Seating lossThickness reductionTest time dependence separately

    Effective area

    Engineering significance
    Overlap of upper and lower contact

    Verification or control
    Actual support geometry

    Average pressure

    Engineering significance
    Force divided by area

    Verification or control
    Review local concentration separately

    Stiffness k

    Engineering significance
    Force per elastic displacement

    Verification or control
    Match state and units

    Seating loss

    Engineering significance
    Thickness reduction

    Verification or control
    Test time dependence separately

    Initial torque alone does not establish long-term retained preload.

    Interface.

    Load control and inspection

    09 / LIMITER INTERFACE

    Compression limiters and insulation boundaries

    Check whether a load-bypass feature preserves the required function.

    A metal compression limiter can route some or most tightening load through a metal path. Its length tolerance relative to washer and plate thickness is crucial: an overly long limiter may leave the polymer poorly retained, while an overly short one may permit excessive compression.

    The bolt head or spreading washer must cover the limiter and polymer as intended. A limiter that does not seat on the support, or is misaligned with another insert, will not create the expected load path. Check actual contact and clearance through sectional and dimensional review.

    Adding a metal limiter can introduce an electrical connection. For isolation duties, examine the bolt, sleeve, plates and contamination paths together and perform the required tests. Load retention and electrical separation remain distinct requirements.

    Check whether a load-bypass feature preserves the required function.

    Length tolerance

    Determines load sharing. Review thickness stack

    Compression limiters and insulation boundaries — Review Criteria

    Review itemEngineering significanceVerification or control
    Length toleranceDetermines load sharingReview thickness stack
    Upper bearingCovers limiter and polymerCheck contact area
    End seatingContinuity of metal pathOffset and insert alignment
    Isolation boundaryNew conductive pathAssembly testing

    Length tolerance

    Engineering significance
    Determines load sharing

    Verification or control
    Review thickness stack

    Upper bearing

    Engineering significance
    Covers limiter and polymer

    Verification or control
    Check contact area

    End seating

    Engineering significance
    Continuity of metal path

    Verification or control
    Offset and insert alignment

    Isolation boundary

    Engineering significance
    New conductive path

    Verification or control
    Assembly testing

    10 / LOW-FORCE INSPECTION

    Thickness, parallelism and bore inspection

    Define inspection conditions that do not distort the part.

    Thickness distribution at several locations may matter more than a single reading. In contact measurement, force and contact area affect polymer indentation. Fix the instrument and contact geometry, and review recovery time between repeated readings. A smaller contact is not automatically more accurate.

    Flatness and parallelism are separate characteristics describing the faces and their relationship. Full support can flatten a dished part and conceal free-state distortion. Define support points and restraint from assembly needs, separating parting projections and edge burrs from face geometry.

    For bore and outside diameter, consider clearance, roundness and concentric relationships together. Forcing a plug gauge into a soft ring can enlarge it and distort the decision. Connect low-load conditioned measurements with assembly checks, recording environment and material lot.

    Thickness

    Spatial distribution. Fixed force and contact area

    Parallelism

    Relative face orientation. State support and restraint

    Bore

    Fit and roundness. Avoid forced insertion

    Thickness

    Spatial distribution. Fixed force and contact area

    Thickness, parallelism and bore inspection — Review Criteria

    Review itemEngineering significanceVerification or control
    ThicknessSpatial distributionFixed force and contact area
    ParallelismRelative face orientationState support and restraint
    BoreFit and roundnessAvoid forced insertion
    EnvironmentDimensional conditionTemperature, humidity and elapsed time

    Thickness

    Engineering significance
    Spatial distribution

    Verification or control
    Fixed force and contact area

    Parallelism

    Engineering significance
    Relative face orientation

    Verification or control
    State support and restraint

    Bore

    Engineering significance
    Fit and roundness

    Verification or control
    Avoid forced insertion

    Environment

    Engineering significance
    Dimensional condition

    Verification or control
    Temperature, humidity and elapsed time

    Validation.

    Retention and qualification

    11 / RETAINED FUNCTION

    Retention tests on the assembly

    Acceptance concerns the function retained after time in service.

    Reproduce the actual bolt, mating faces, lubrication and assembly sequence as closely as practical. Establish initial preload and thickness, then apply relevant temperature, humidity, medium and sustained load. Evaluate retained preload, spacing, sliding, insulation or surface damage according to the function.

    A short high-temperature exposure does not automatically convert to long service life. Transitions, crystallization, moisture movement and chemical changes can alter the response mechanism. Validate accelerated conditions against the actual failure mode before extrapolating.

    Retightening may address initial seating but is not a universal remedy for creep or vibration. Confirm that maintenance is permitted and that further tightening does not damage the polymer. Record the timing and method whenever the joint is disturbed during a test.

    Assembly reproduction

    Bolt, faces and lubrication. Match actual use

    Exposure

    Temperature, time and medium. Function-based test plan

    Retained performance

    Preload, gap and isolation. Define limits in advance

    Acceptance concerns the function retained after time in service.

    Assembly reproduction

    Bolt, faces and lubrication. Match actual use

    Retention tests on the assembly — Review Criteria

    Review itemEngineering significanceVerification or control
    Assembly reproductionBolt, faces and lubricationMatch actual use
    ExposureTemperature, time and mediumFunction-based test plan
    Retained performancePreload, gap and isolationDefine limits in advance
    Acceleration or retighteningCan change responseRecord justification and history

    Assembly reproduction

    Engineering significance
    Bolt, faces and lubrication

    Verification or control
    Match actual use

    Exposure

    Engineering significance
    Temperature, time and medium

    Verification or control
    Function-based test plan

    Retained performance

    Engineering significance
    Preload, gap and isolation

    Verification or control
    Define limits in advance

    Acceleration or retightening

    Engineering significance
    Can change response

    Verification or control
    Record justification and history

    12 / PRODUCTION RELEASE

    Drawing definition and production approval

    Freeze material, condition, geometry and inspection as one package.

    Specify supplied grade, bore, outside diameter, thickness, necessary form tolerances and edge condition. Link conditioning and measuring force to inspection documents where relevant, with separate insulation, cleanliness and traceability requirements. Appearance does not replace material certification.

    During first-article approval, compare free and assembled states and check dimensional changes after machining, storage and cleaning. Production records should retain material lot, tooling, clamping, parting and second-operation details, and inspection environment. A new supplier or stock form needs review even within the same polymer family.

    A reliable polymer washer combines accurate manufacture with retention of useful geometry in service. Connect suitable grade, real support area, low-distortion machining and inspection, and assembly tests. Short-term strength or initial tightening torque alone cannot establish long-term performance.

    Drawing definition

    Material, dimensions and edges. Grade and revision control

    Inspection conditions

    Environment, force and support. Reproducible procedure

    First-article approval

    Free and assembled states. Verify retained function

    Drawing definition

    Material, dimensions and edges. Grade and revision control

    Drawing definition and production approval — Review Criteria

    Review itemEngineering significanceVerification or control
    Drawing definitionMaterial, dimensions and edgesGrade and revision control
    Inspection conditionsEnvironment, force and supportReproducible procedure
    First-article approvalFree and assembled statesVerify retained function
    Production historyStock, process and revisionLot traceability

    Drawing definition

    Engineering significance
    Material, dimensions and edges

    Verification or control
    Grade and revision control

    Inspection conditions

    Engineering significance
    Environment, force and support

    Verification or control
    Reproducible procedure

    First-article approval

    Engineering significance
    Free and assembled states

    Verification or control
    Verify retained function

    Production history

    Engineering significance
    Stock, process and revision

    Verification or control
    Lot traceability

    Precision machining and retention testing belong together.

    Structural & Connecting Components

    Structural & Connecting Components

    Structural & Connecting Components

    Structural & Connecting Components

    Structural & Connecting Components

    ADDITIONAL INFORMATION

    추가 정보

    핵심 요약

    수지 평와셔는 공급 등급과 환경 상태, 실제 지지 면적 및 체결부 강성을 함께 고려해야 합니다. 가공 직후 치수뿐 아니라 조건화 후 형상과 장시간 잔류 축력으로 기능을 검증합니다.

    핵심 설계·검증 포인트

    01 / 하중 분산·간격·절연 중 우선 기능을 정합니다.

    02 / 색상 대신 공급 등급과 충전재를 확인합니다.

    03 / 상하 접촉이 겹치는 실제 면적을 계산합니다.

    04 / 온습도·세정·안정화 후의 치수 상태를 정의합니다.

    05 / 가공 고정압과 검사 측정력에 의한 변형을 확인합니다.

    06 / 단기 강도와 장기 허용 하중을 구분합니다.

    07 / 실제 조립체에서 시간 경과 후 기능을 검증합니다.

    FAQ · 자주 묻는 기술 질문

    색상으로는 식별할 수 없습니다. 공급사 등급과 성적서를 확인하고 필요하면 재질 분석으로 검증합니다.

    일반 평와셔는 잠금 부품이 아닙니다. 크리프와 축력 감소, 진동 요구를 검토하고 별도 잠금 구조를 평가합니다.

    실제 상하 접촉과 지지가 함께 넓어져야 합니다. 비지지 영역은 단순 면적 계산에 포함하지 않습니다.

    단기 시험값만으로는 부족합니다. 실제 온도·시간·구속 상태의 크리프와 잔류 성능이 필요합니다.

    고성능 수지도 시간과 온도에 의존합니다. 정확한 등급과 조립 조건으로 평가해야 합니다.

    요구 공차와 돌기·휨·평행도에 따라 다릅니다. 필요한 경우 여유를 남기고 반대 면을 마무리합니다.

    하중 경로와 전기 경로를 모두 검토해야 합니다. 리미터가 새 전도 경로를 만들 수 있으므로 조립체 시험으로 확인합니다.

    등급·내외경·두께·형상 공차, 볼트와 지지면, 사용 온습도·매질·시간 및 검사·잔류 성능 기준입니다.

    함께 검토할 기술 주제

    수지 부싱과 조립 여유

    열팽창·흡습이 보어와 상대 축에 미치는 영향을 함께 검토합니다.

    체결축력과 압축 경로

    볼트·지지면·리미터의 강성과 실제 접촉을 연결합니다.

    얇은 링의 가공·검사

    고정과 측정 중 변형을 줄여 자유 상태 형상을 확인합니다.

    관련 사업분야와 개발 문의

    관련 키워드

    수지 평와셔폴리머 와셔NC 선반유효 면압압축 크리프응력 완화잔류 축력조건화평행도압축 리미터저하중 측정

    Technical Overview

    Polymer washers require coordinated review of supplied grade, environment, effective support and joint stiffness. Verify conditioned geometry and retained preload over time as well as dimensions immediately after machining.

    Key Design and Validation Points

    01 / Prioritize load distribution, spacing or isolation.

    02 / Confirm grade and fillers rather than relying on color.

    03 / Calculate the actual overlap of loading and support.

    04 / Define dimensions after conditioning, cleaning and stabilization.

    05 / Check distortion from clamping and measurement force.

    06 / Separate short-term strength from long-term loading limits.

    07 / Verify retained function in the actual assembly.

    FAQ · Technical Questions and Answers

    No. Confirm the supplied grade and certificate, using material analysis if identification requires it.

    A plain washer is not a locking element. Review creep, preload loss and vibration, and evaluate separate locking features.

    Only if upper contact and lower support expand accordingly. Unsupported regions cannot simply be counted as loaded area.

    A short-term value is insufficient. Creep and retained function must match temperature, duration and constraint.

    No. High-performance polymers remain time- and temperature-dependent. Evaluate the exact grade and assembly.

    It depends on tolerance, projections, distortion and parallelism. Leave allowance for second-face finishing where necessary.

    Review both mechanical and electrical paths. A limiter can create a new conductive connection, requiring assembly verification.

    Grade, diameters, thickness, form tolerances, bolt and supports, service environment and duration, inspection and retained-performance criteria.

    Related Engineering Topics

    Polymer bushings and clearance

    Review expansion and moisture effects on bore and mating shaft together.

    Preload and compressive load paths

    Connect bolt, support and limiter stiffness with actual contact.

    Machining and inspecting thin rings

    Limit restraint-induced distortion and verify free-state geometry.

    Related Capabilities and Development Inquiry

    Related Keywords

    Polymer flat washerEngineering thermoplasticCNC turningEffective pressureCompressive creepStress relaxationResidual preloadConditioningParallelismCompression limiterLow-force measurement

    Showing 1-6 of 109 results
    전기차 급속충전 커넥터의 은색 수핀과 내부 다점 접촉 소켓

    전기차 급속충전 커넥터 접점: 고전류를 받는 핀과 소켓의 구조

    전기차 급속충전 커넥터 접점은 차량 인렛의 핀과 충전 플러그의 소켓이 만드는 고전류 인터페이스입니다. 눈에 잘 보이지 않는 접촉대, 도금과 케이블…
    구리관과 스테인리스 소켓이 은계 브레이징 접합층으로 연결된 조립 구조

    구리–스테인리스 이종 브레이징: 젖음·열간 간극·계면 내구성

    구리–스테인리스 이종 브레이징 설계에서는 젖음, 열간 간극, 용가재와 공정 관리를 함께 검토해야 합니다.
    LOUVER PANEL / 연결된 후드와 열린 통로

    판금 루버 성형: 개구 형상·금형·압력손실을 연결하는 설계

    루버는 판에 구멍을 많이 만드는 작업을 넘어, 절개한 재료를 원하는 방향으로 세워 공기의 통로와 패널의 구조를 함께 만드는 성형입니다.
    PLATED INTERFACES / 단계 축과 플랜지 부시

    도금 공차 설계: 기능 치수·두께 분포·완성 검사

    정밀 부품의 표면처리는 재료의 기능을 바꾸면서 조립 공간도 바꿉니다. 외경은 커지고 내경은 작아지며, 마스킹 경계와 국부 성장까지 상대 부품의 움직임에…
    AgW CONTACT / 구리 지지체에 접합된 복합 접점

    은·텅스텐 접점: 복합 조직·침투 제조·접합 품질의 설계

    두 상의 연결이 접점의 성능을 만듭니다.
    바깥 U형 스프링과 안쪽 텅에 두 원형 접점을 결합한 리벳 접점 조립품

    리벳 접점 조립품: 프레스 스프링·와이퍼 브러시의 설계와 품질관리

    프레스 스프링과 와이퍼 브러시를 구성하는 리벳 접점 조립품의 구조·소재·리베팅 공정을 살펴보고, 접촉력·저항·마모를 연결해 설계와 품질관리의 핵심을 정리합니다.

    연결 준비 중입니다. 현재 전화 연결을 이용하실 수 있습니다.

    ID SOLUTECH
    LET’S TALK ENGINEERING

    무엇을
    도와드릴까요?

    아이디솔루텍의 제품과 제조 공정,
    기술자료에 대해 질문해 주세요.
